Product Family

The IN product family consists of linear recessed luminaires that are suitable for direct or indirect lighting of wall surfaces as well as walkways. IN provides pleasant light or aesthetic lighting accents both indoors and outdoors.

IN

“IN can be installed in a variety of ways in grounds, walls or ceilings and, thanks to its discreet design, lends any room—whether indoors or outdoors—a feel-good atmosphere.

What sets IN apart

Versatile linear installation solution

IN can be discreetly integrated into walls, ceilings and grounds and can accommodate up to 5 lighting units (up to 7900 lm), which can be rotated by 5±° without having to open the luminaire.

Flexible Shape of Light

IN is compatible with the A–Series (or T–Series) to provide symmetrical, asymmetrical distributions and visually comfortable solutions to enhance the architecture.

Solid construction

IP66/67, IK10 and low copper content ≤ 0.08% make IN a solid and durable solution.

Technical data

A–Series

Current feed: 200 mA–500 mA, depending on ambient temperature

IN 1: 200–500 mA / IN 2: 200–400 mA / IN 3: 200–400 mA / IN 4: 200–400 mA / IN 5: 200–350 mA

Max. luminous flux 7,900 lm

Color temperatures: 2,200 K (CRI ≥ 70), 2,700 K (CRI ≥ 70), 3,000 K (CRI ≥ 80), 4,000 K (CRI ≥ 70). Other color rendering indexes available upon request

Electronic operating device with DALI, 1–10 V interface, stand-alone programming or Line Switch available upon request

Constant lumen output (CLO) and emergency power supply (AC/DC) available upon request

Smart Lighting: control modules for different communication standards optionally integrated or via external Zhaga interface.

T–Series

Current feed up to 225 mA, depending on ambient temperature

Max. Luminous flux 2,700 lm

Color temperature Tunable White 2,200-6,500 K, Standard CRI ≥ 80, upon request CRI ≥ 90

Electronic operating device with DALI T8 interface.

Body of Light

Ground luminaires
IN ground

Ground
In–ground
Linear
Powder coated
Monochrome
General illumination
Architecture and the arts

Wall luminaires
IN wall

Wall
Recessed
Linear
Powder coated
Monochrome
General illumination
Architecture and the arts

Ceiling luminaires
IN ceiling

Ceiling
Recessed
Linear
Powder coated
Monochrome
General illumination
Architecture and the arts

Shape of Light

The IN product family can accommodate up to 5 lighting units that can be rotated by ±5°. It is compatible with A–Series and T–Series lenses—the A–Series product range alone allows 1,799,866,966 lens combinations—and can therefore achieve a variety of light distributions for unbeatable illumination. In addition, systems such as ewoLightTile and ewoLightLayers can be used to adapt the light to any requirements.

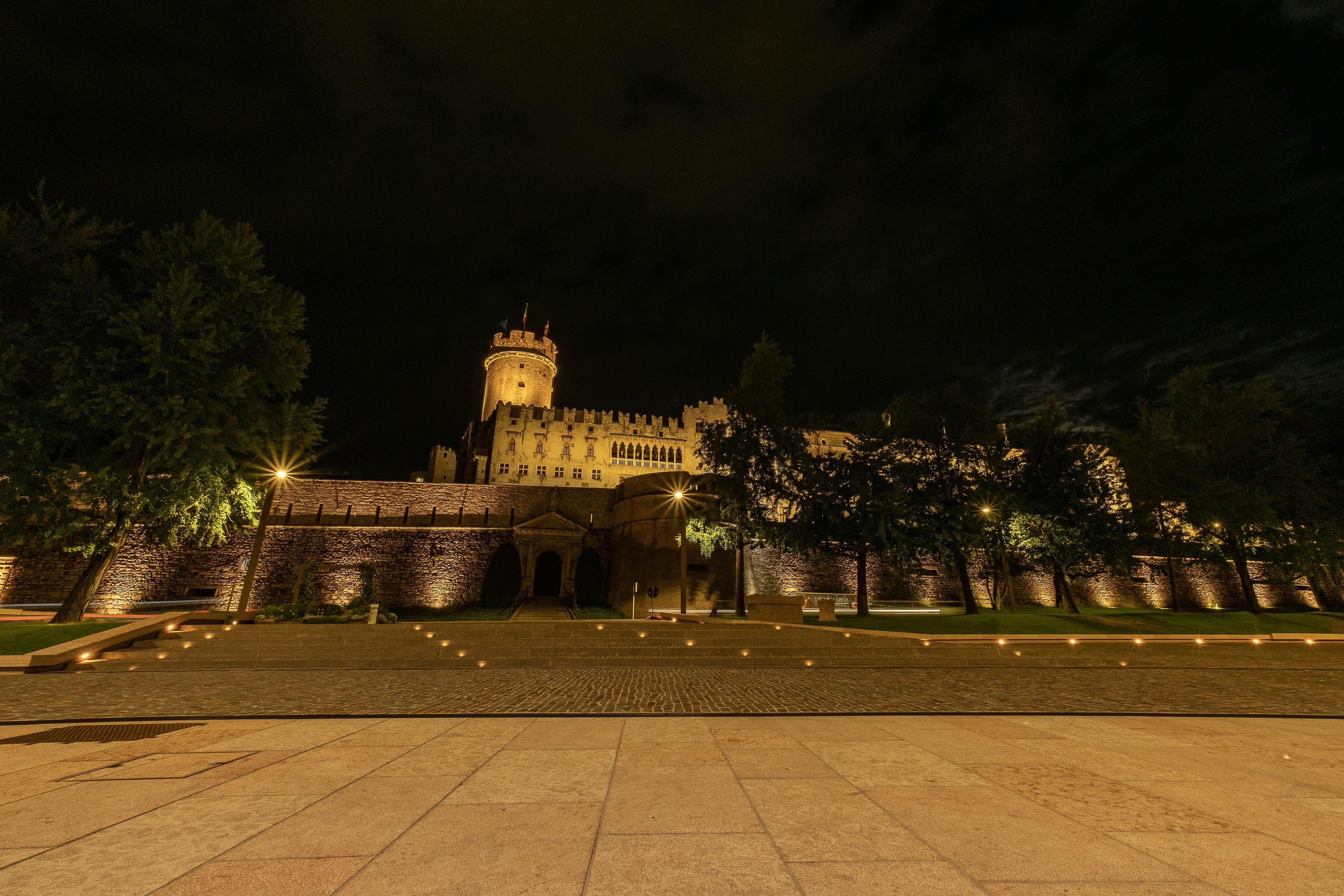

Castello del Buonconsiglio, Trento (IT) © Denise Smalzi

IN is perfect for discreetly illuminating the Italian Buonconsiglio castle without the technical components being visible

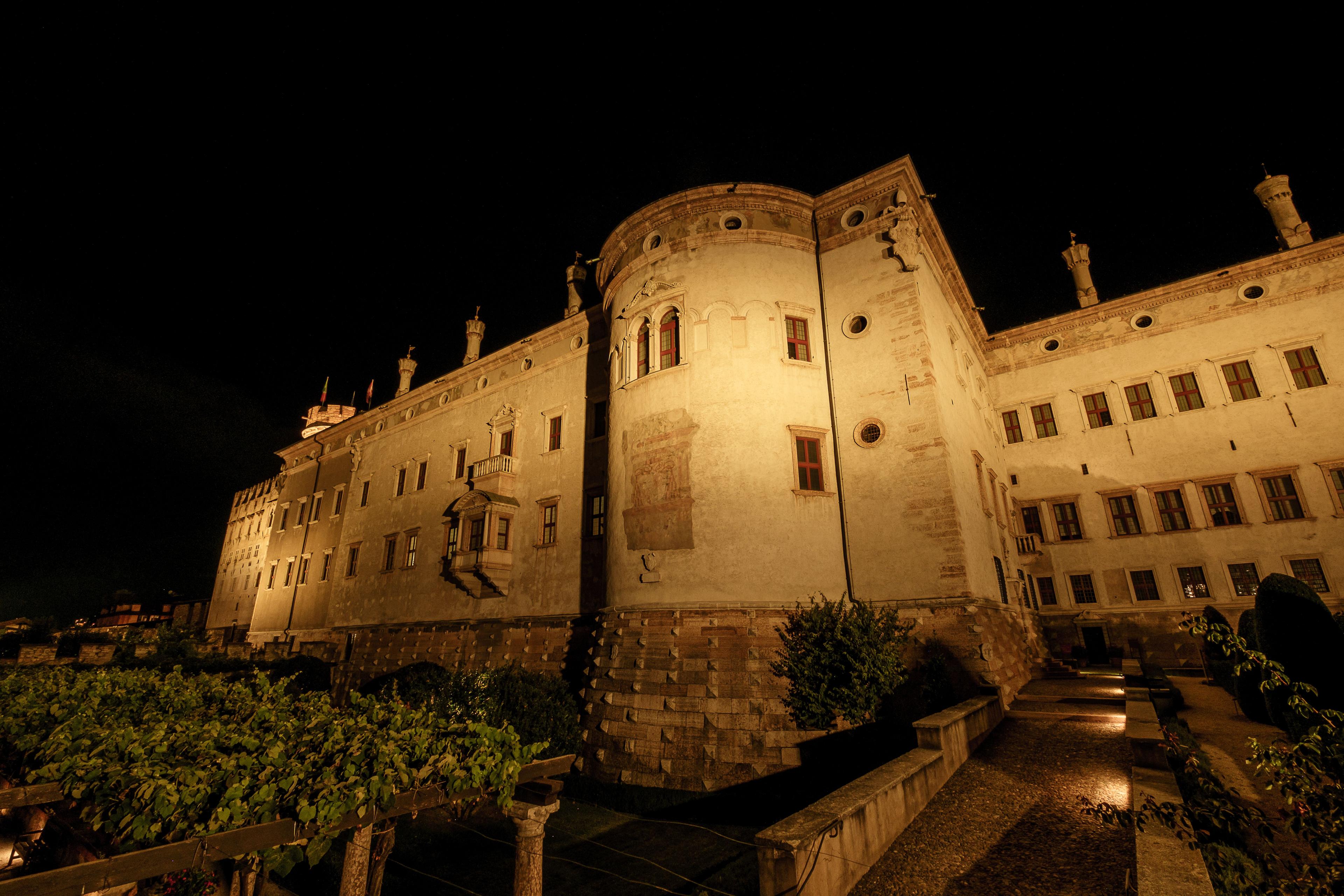

Castello del Buonconsiglio, Trento (IT) © Denise Smalzi

IN also contributes to the fact that the light is not only purely functional, but also acts as a design element

Intelligence of Light

The IN product family is DALI-compatible and can be connected to intelligent control systems via an internal or external node. In this way, the luminaire can be controlled individually or in groups. With the help of an external Zhaga interface, there is also the option of integration into smart city systems.

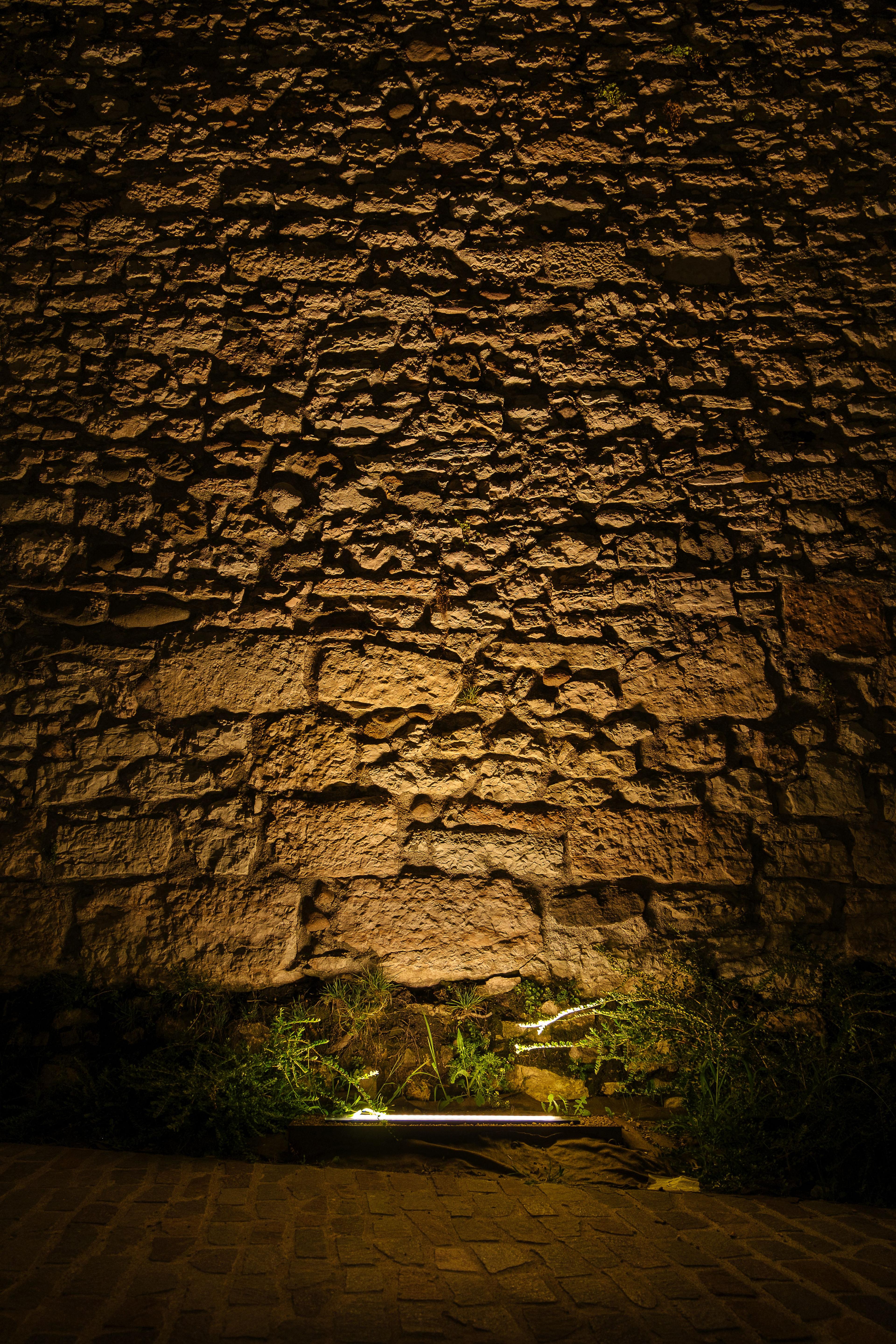

A total of 31 in-ground luminaires from the IN series were used at the Castello del Buonconsiglio, equipped with AG04H lenses

In this project, IN was equipped with intelligent control by nodexx integral and external, and radio bridges were also used to bypass the thick lock walls
